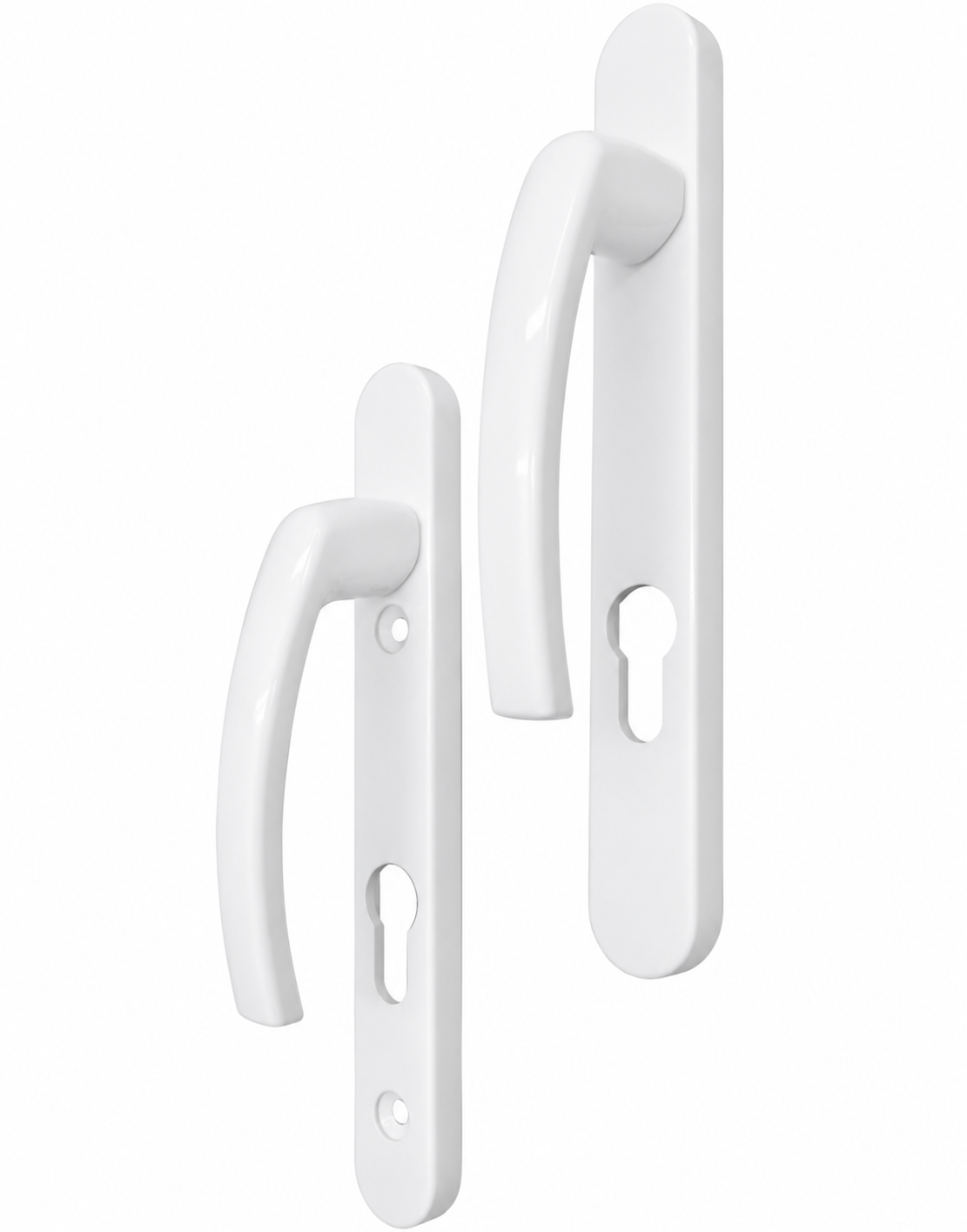

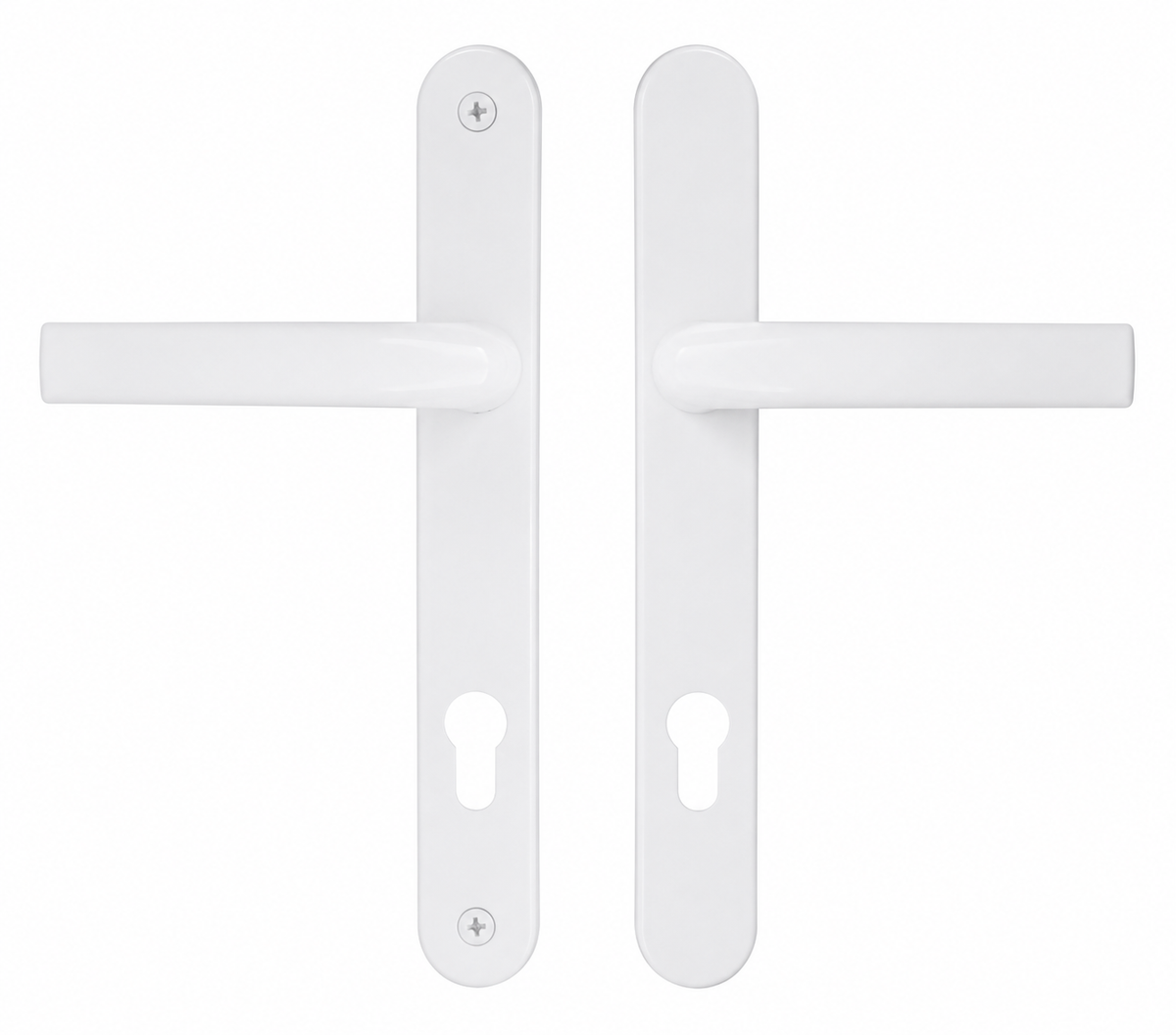

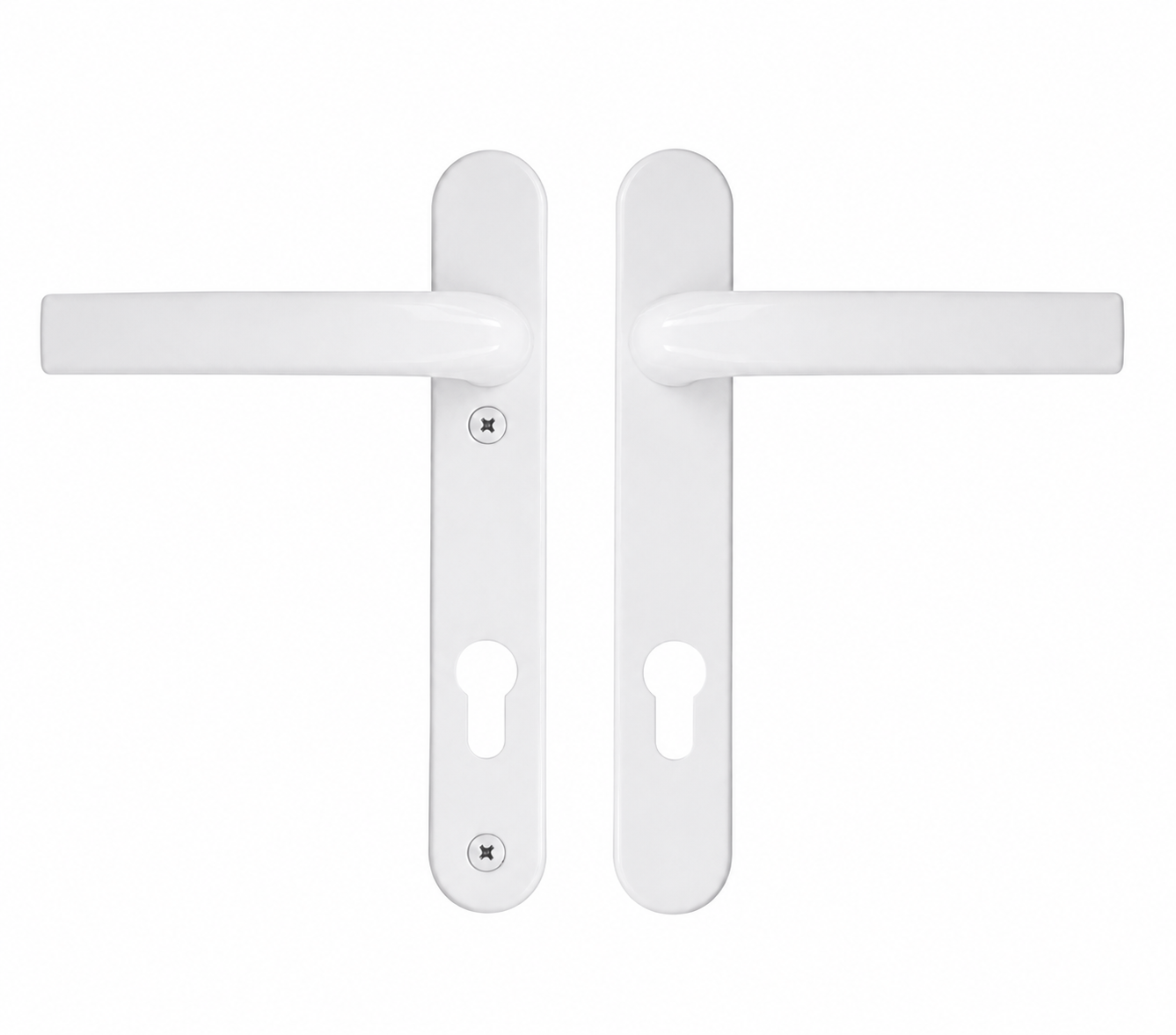

This modern design from Winlock features ergonomically crafted levers giving a comfortable, secure grip with a non-handed configuration. Spring cassettes are fitted to the handle dramatically reducing sag and its grade 5 corrosion resistance ensures longevity.
Features:
Non-handed, levers are fully reversible
Fully sprung
Grade 5 corrosion resistance
Ergonomically crafted levers
Stylish and Robust door handle ideal for the new build or trade markets.
M6 fixings with reinforced bosses for extra security.

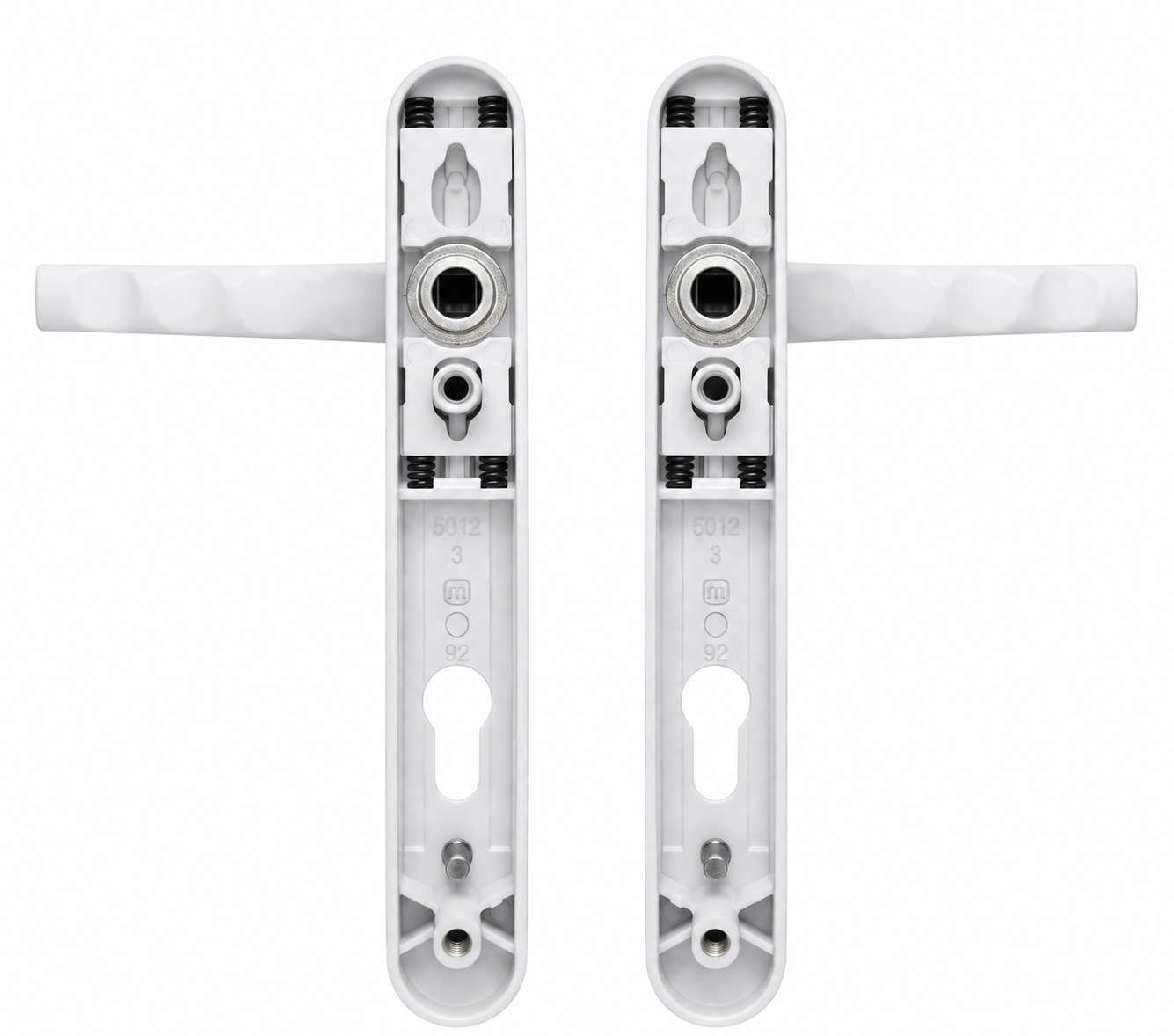

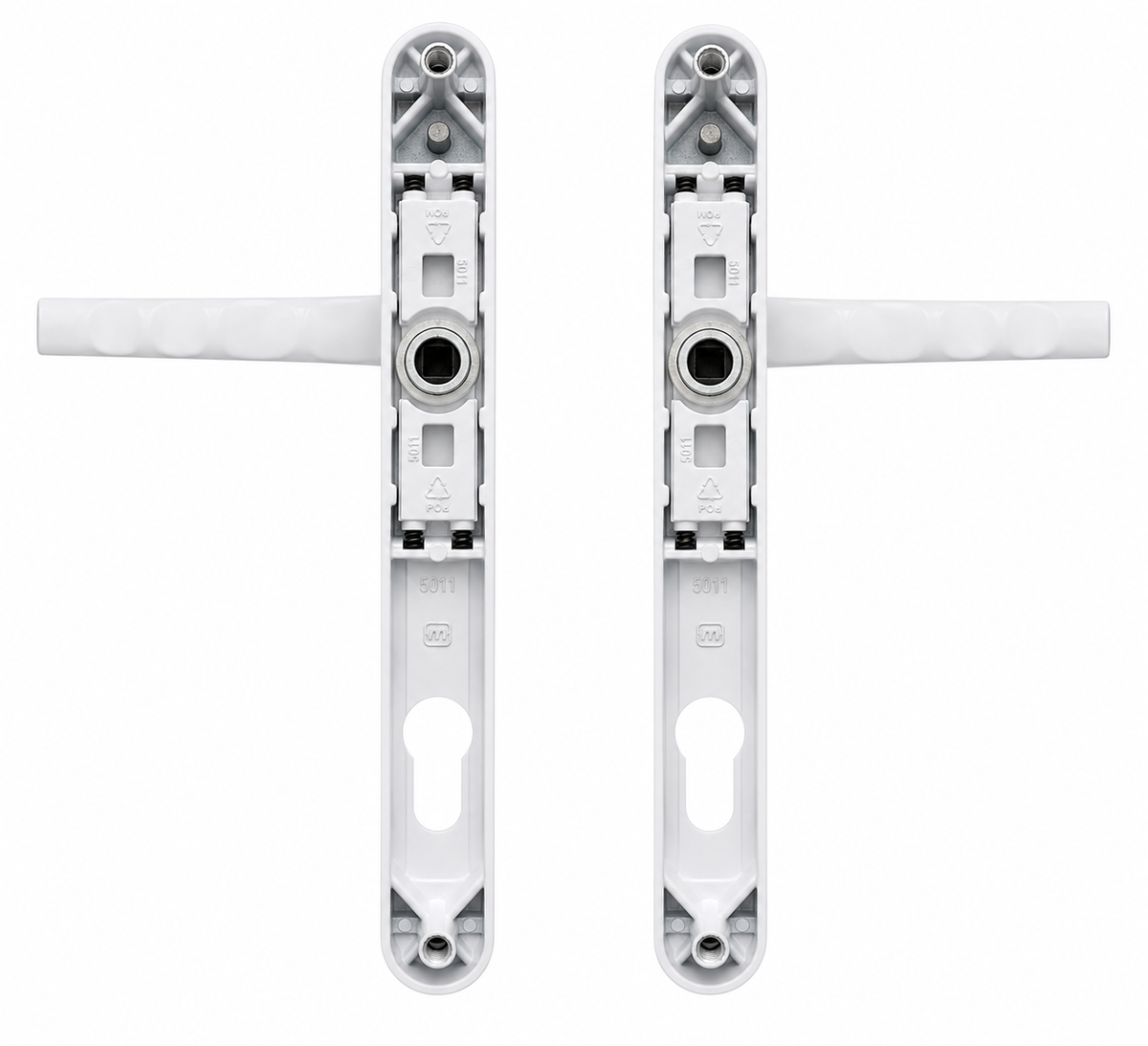

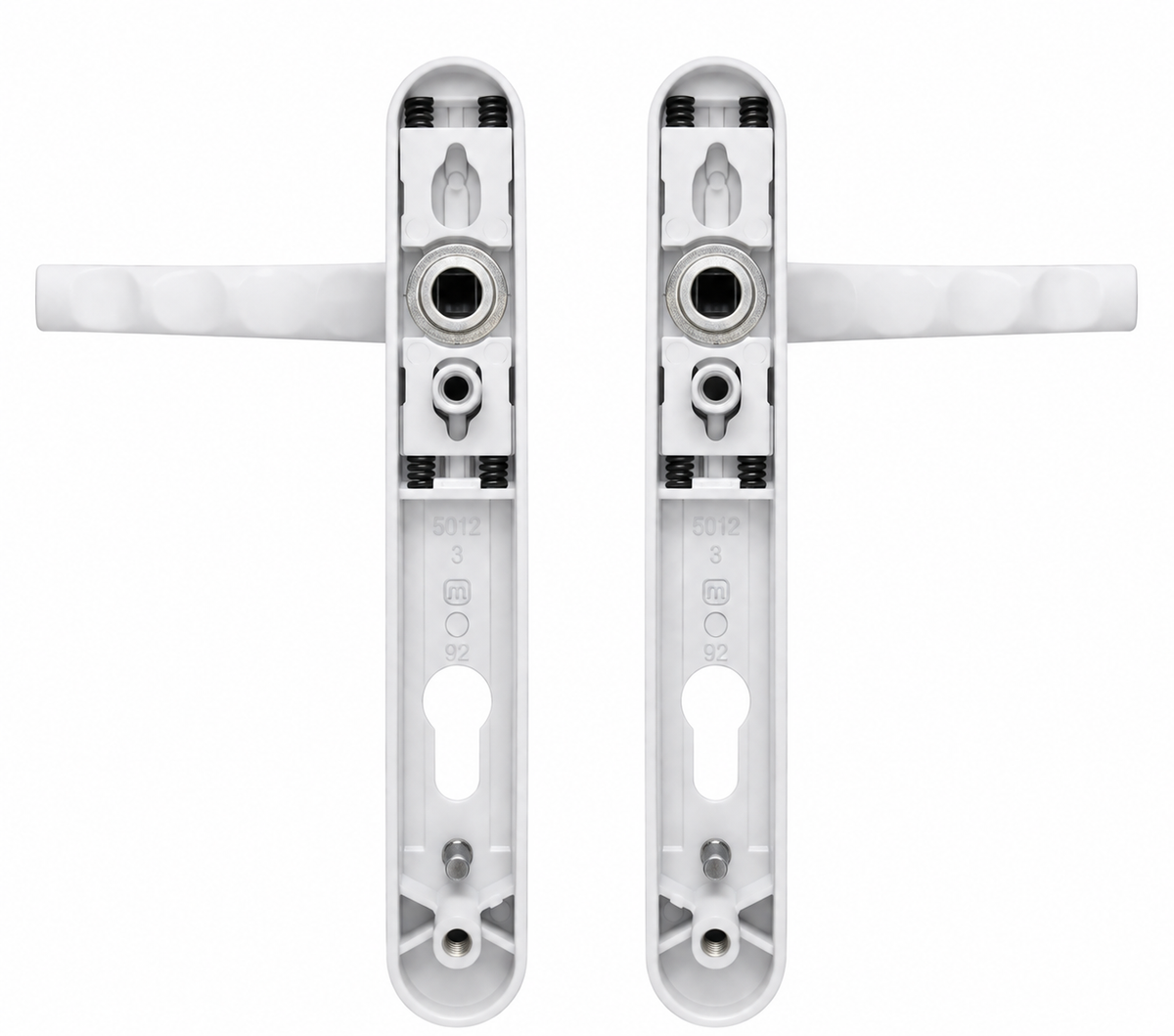

Spring cassettes fitted.
Supplied complete with 4 screws and 2 spindles
Guarantee is 2 years parts and labour and 10-years parts only.
BS EN ISO 9001/2015 QualityManagement System.
Pack contains:
1 x Set of Winlock 92PZ Sprung Door Handles
1 x 134mm and 1 x 118mm Spindles

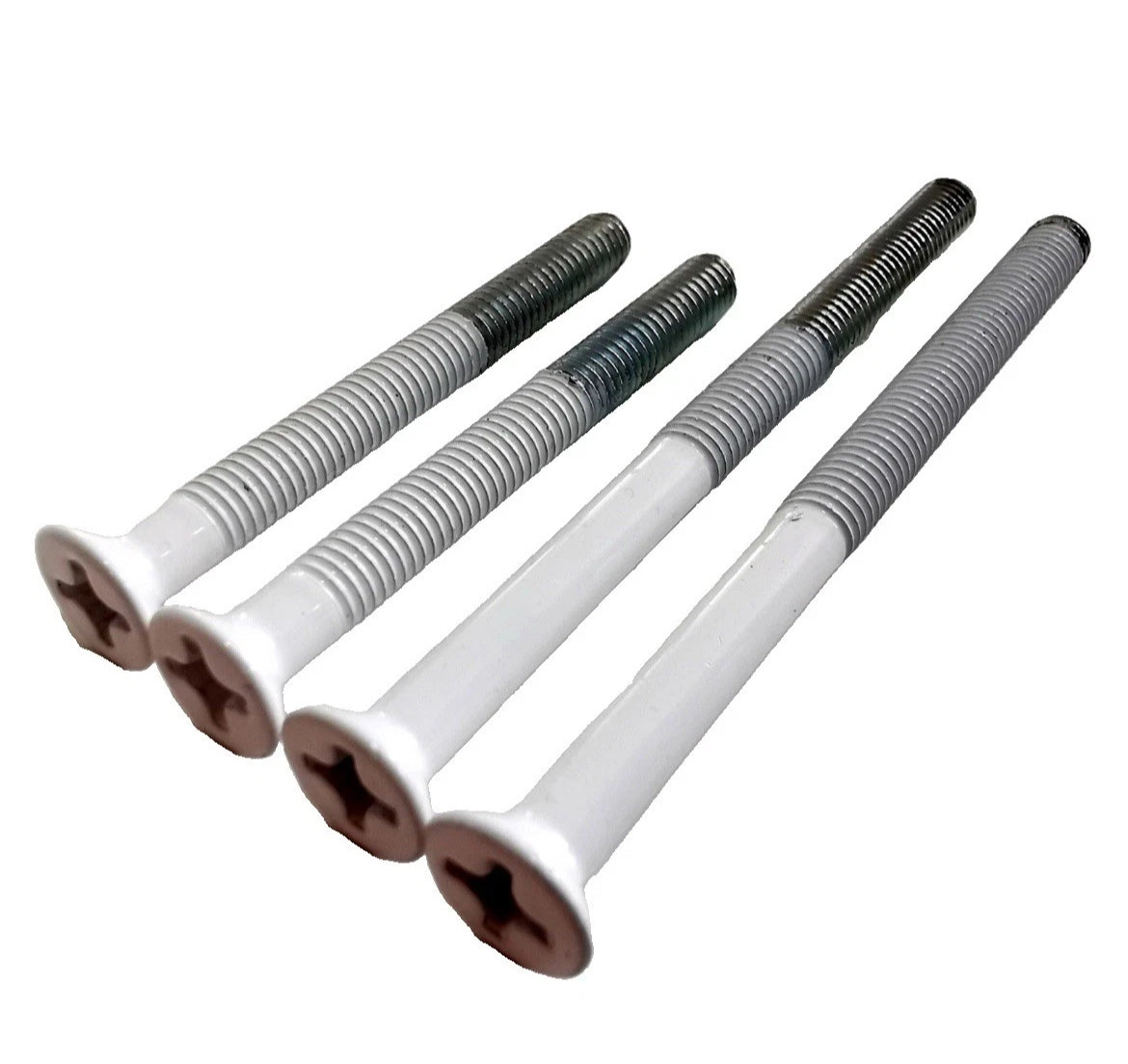

2 x 86mm and 2 x 60mm Reinforced M6 Screw fixings
Dimensions:
PZ Centres: 92mm critical dimension from centre of handle spindle to centre of barrel (the most common size)
Spindle Size: 8mm
Backplate width: 30mm
Backplate depth: 12.5mm
Backplate length: 220mm and 240mm

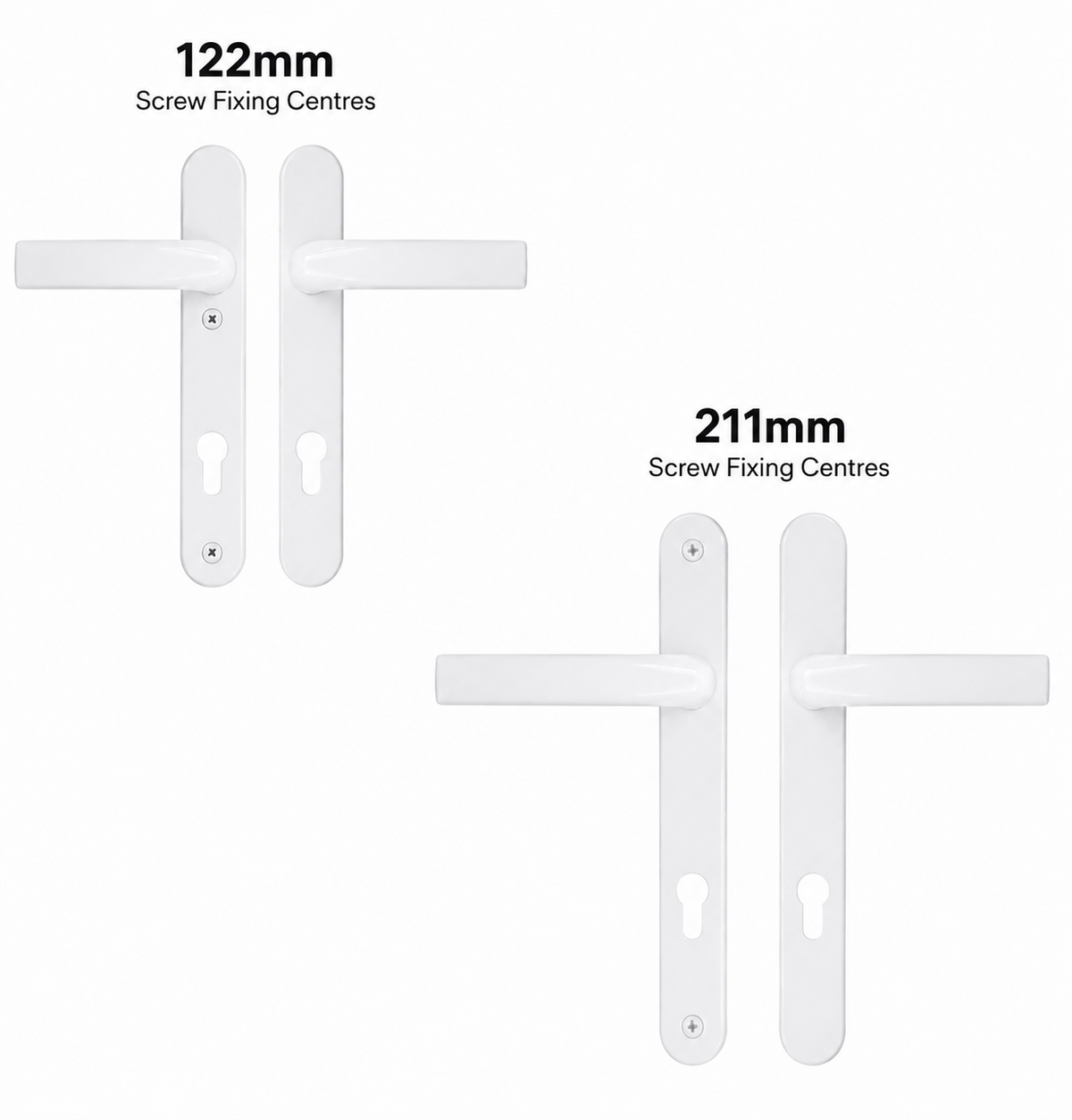

Distance between screw hole centres: 122mm and 211mm
Fits door thicknesses 44-51mm & 69-75mm (52-68mm by trimming screw)
Spindle and 2 fixing screws are supplied long and may require trimming depending on door thickness and handle positioning.
Please ensure correct spindle engagement depth when fitting.
Technical:

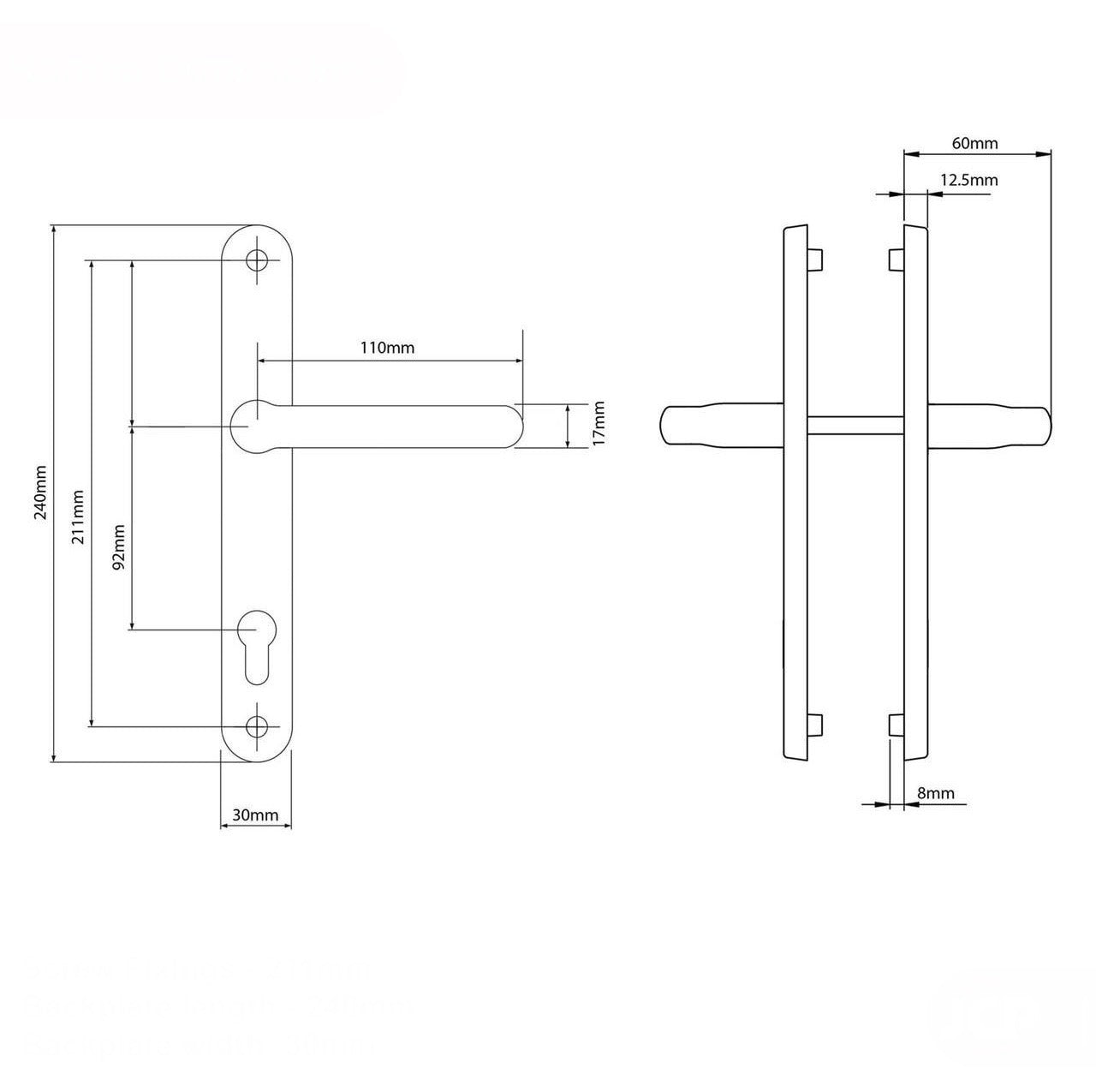

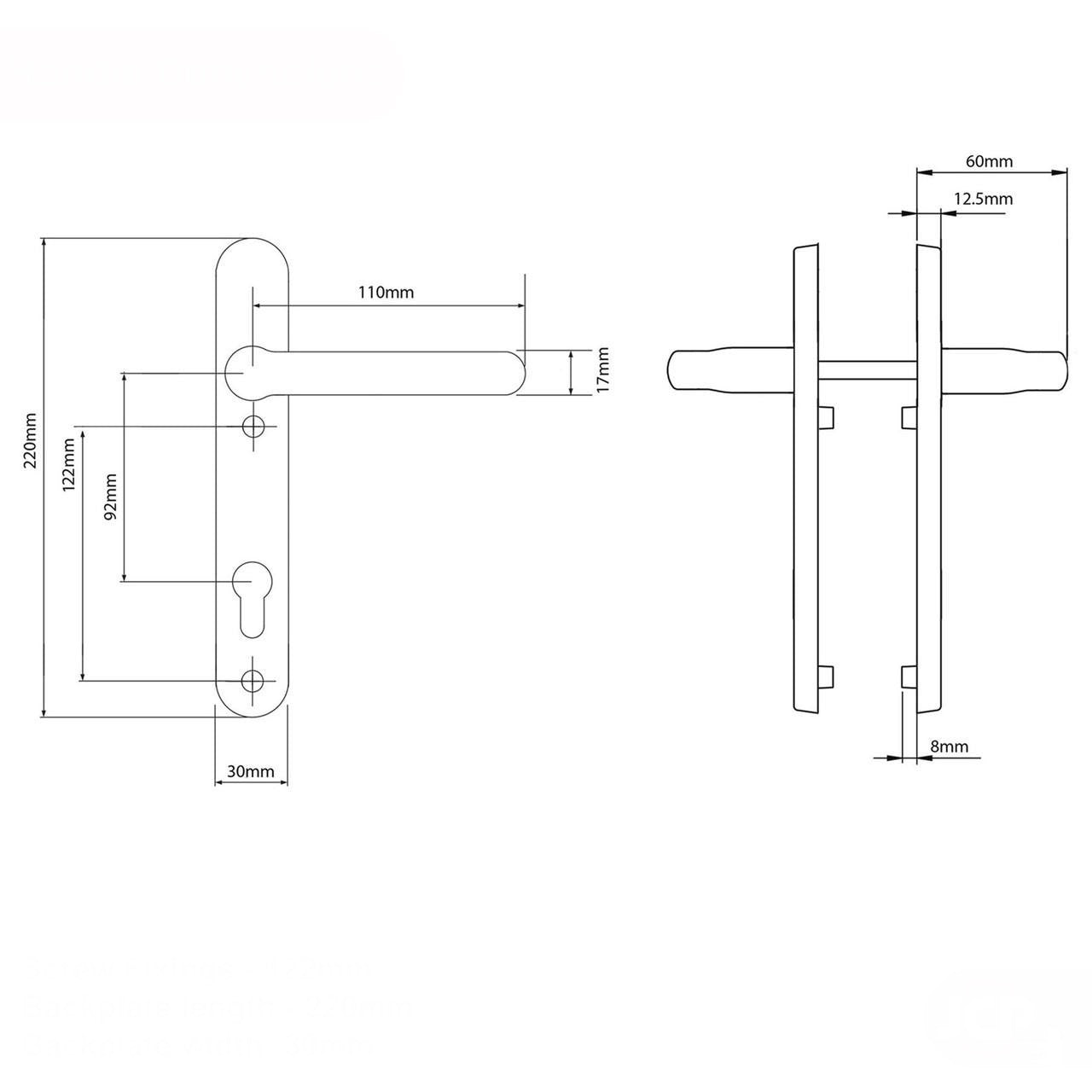

A full technical diagram is included in the image gallery.
Please measure your existing door hardware carefully before ordering. The critical measurements are the distance between screw holes (centre to centre) and the distance from the centre of the handle spindle to the centre of the keyhole.
